Aarmour Gard Window Films

Windows and skylights provide natural light and make your vehicle, home or office unique. However, they also allow the sun’s damaging rays to pass through and fade your furniture, floors, draperies, and artwork. The sun’s heat can also make your home or office uncomfortably hot in the summer.


Aarmour Gard Window Films filter out 99% of the sun’s UV light and upto 90% solar heat yet allow natural light to pass through. You’ll experience reduced glare, heat, and fade reduction without the use of draperies or blinds.

Brochure

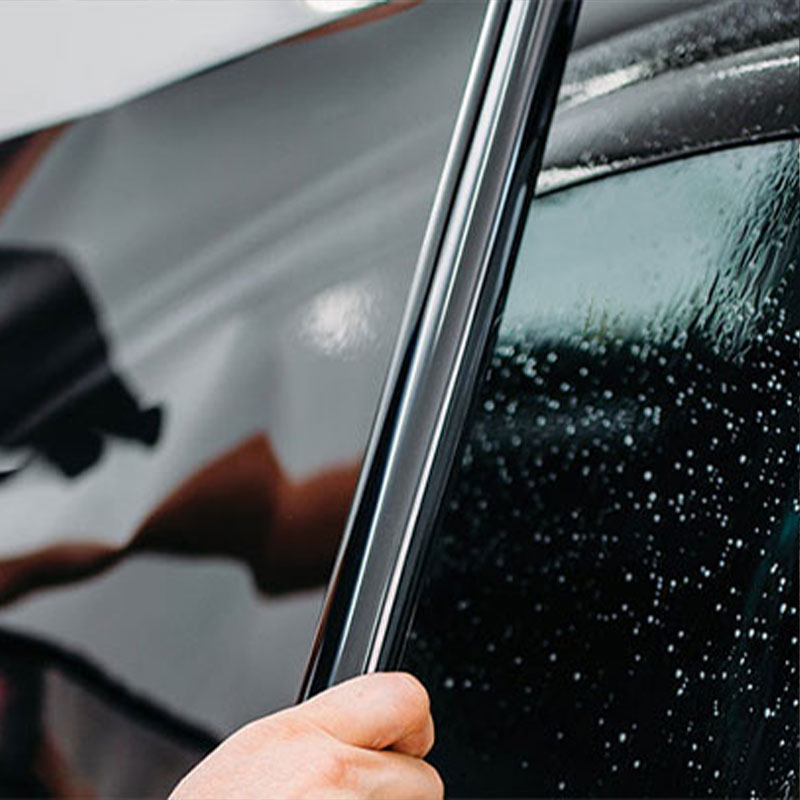

Automotive window films

  • Available in Dyed, Metalized and Nano Ceramic.
  • Range of films available for front windscreen with VLT(Visible Light Transmission) 75% for comfortable driving with anti glare properties.
  • Rejects IR heat more than 90% , reduces inside temperature considerably reducing substantial load on A/C less fuel consumption.
  • No metal no dye particles added, (Nano Ceramic type), no radio frequency interruption or disturbance while using Mobile, GPS , etc.
  • 2 ply construction(Nano Ceramic type) provides significant extra strength to the existing glass.
  • Warranty from 2 ½ years to 7 years.

Specifications: The total solar energy rejected values are of the film alone and not with film mounted on glass.


Professional dyed film, enhances external appearance. Good heat rejection. More than 98% of ultra violet rejection. Maintains the beauty, value & pristine finish of the interiors.Prevents tanning of skin & protects the eyes. Superb anti scratch resistant coating. Superior optical clarity. No joints in the film, single piece installation for immaculate finish and appearance.

Film Type Visible light
Transmittance
Transmittance
Total Solar Energy Rejected
Visible light
reflectance
UV rejection
N Blk 50 53 % 30 % 5.9 % > 98 %
N Blk 70 70 % 28 % 7.7 % > 98 %

Latest Nano Ceramic technology. Alps are 100% metal free and dye free, very high infrared heat rejection upto 90%. Reduces cabin temperature by 4 to12 deg, lower fuel consumption. Low on glare and solar reflectivity. Range of films for front wind screen. There is no radio frequency interruption with mobile phone, GPS etc. Construction of 2 ply makes the glass shatter proof for added protection.

Film Type Visible light
Transmittance
Infrared Rejected Total Solar Energy Rejected Visible light Reflectance UV rejection
IR 45 75 % 45 % 42 % 8.4 % 99 %
IR 60 68 % 62 % 59 % 9.6 % 99 %
IR 80 72 % 81 % 50 % 8.3 % 99 %
IR 90 50 % 90 % 80 % 8 % 99 %
IR 96 74 % 96 % 56 % 3 % 99 %
IR 98 68 % 98 % 58 % 5.5 % 99 %
IR 98 50 % 98 % 66 % 6 % 99 %

Architecture

  • Available in a wide range of colours and shades in Reflective, Dyed, Premium Dyed infrared and Nano Ceramic.
  • Protects the furnishings from fading and keeps the colours looking vibrant.
  • Improves the aesthetics of the exterior glazing and far more effective in rejecting heat, no need to use tinted/reflective glass.
  • In Premium Dyed infrared and Nano ceramic range the VLT can be high yet reducing heat effectively thereby reducing the cost on lighting.
  • Available from 05 to 70 VLT in various range as per customer requirement.
  • Warranty from 2 to 10 years.

Wide Range of window films are available.Kindly let us know your requirement to enable us to suggest you the best solution.

Safety and Security Films

  • Also called as bullet resistant films. Virtually invisible after application of clear film.
  • Prevents smash and grab thefts, burglary, forced entry, protects home/business 24 x 7.
  • Available in Nano ceramic range along with Safety which reduces Infrared rays by 80% thereby keeping heat energy out, keeps interior cool, saves energy cost to a great extent, improves aesthetics.
  • With warranty up to 10 years.

Product/Structure Tensile Strength(psi) Elongation Total Puncture Peel Melting Break Strength
Thickness(Mil) T.D M.D T.D M.D VLT % Resistance Load(lbs) Strength (gr/inch) Point Deg.C T.D M.D
Safety 1 ply 2 Mil 29601 33337 114 78 87.5 31.3 1800 255-265 47.7 58.1
Safety 1 ply 4 Mil 33050 39947 88 73 87.1 52.3 1800 255-265 78.5 94.4
Safety 1 ply 7 Mil 35636 40522 107 62 86.5 87.2 1800 255-265 158 176
Safety 2 ply 4 Mil 30463 34199 88 64 86 53.1 1800 255-265 101 116
Safety 2 ply 8 Mil 32762 39372 81 66 86.2 93.2 1800 255-265 182 217
Safety 2 ply 15 Mil 36154 44512 104 71 85.5 183.4 1800 255-265 347 361
Safety 3 ply 12 Mil 34774 43395 99 67 85.7 133 1800 255-265 251 298
Safety 3 ply 15 Mil 37521 45010 104 72 85 203 1800 255-265 391 411

> TD :Transverse direction

> MD :Machine direction

Aarmour Gard Safety Film

Front Glass - Without and with Aarmour Gard film

Please check the day light and night effects of Aarmour Gard film. In the daylight, film protects you from UV rays, heat and a glare on glass. During the night, you will be protected from vehicle high beam light and the glare on your glass. Contact us for the demo and installation.

Q. Will darker shade film reject more heat?

Ans : No. It all depends on the quality of the film and not on the colour or shade. The film may be absolutely transparent but still rejects much more heat than a darker film. Always check the TSER (Total Solar Energy Rejected) figures.

Q. Do all the films look alike after fixing?

Ans : Yes. The films may look the same on immediate fixing. But over a period of time they may fade or bubbles may erupt and even the heat rejection may come down after a very short period of time which may be as less as 2 months. Scratches may appear on the film of inferior quality. So always insist on the warranty card. Aarmour Gard films give warranty up to 7 years. You may pay a little higher price for a quality product but be rest assured that you get more than what you have paid for.

Q. Are all the films installed the same way?

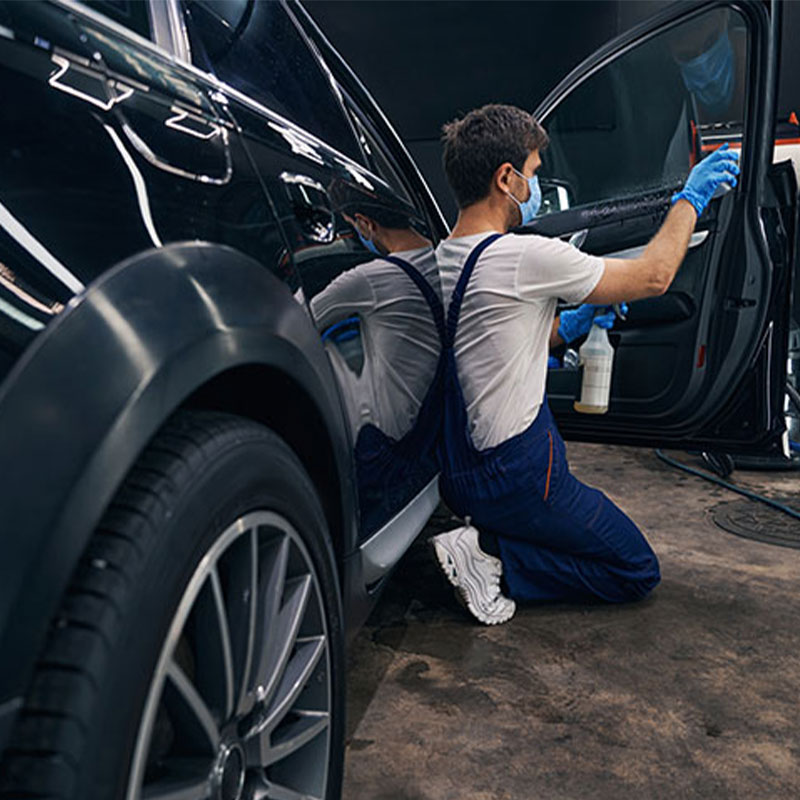

Ans : Yes. All the films are installed from inside the glass. The films are installed by professionals to give you an immaculate finish without any strips or joints on the rear glass.

Q. Why is film required when tinted glasses are supplied by the Car manufacturer?

Ans : The tinted glasses are slightly better as compared to plain glasses when we talk of heat reduction. But they do not give you protection from harmful UV rays which are responsible for tanning of the skin and fading of the interiors. Tinted glasses do not help much in cutting down the infrared rays which are responsible for generating heat. More over a good quality films will make the glasses shatter proof in case of an impact on the glass, providing additional safety.

Q. Films for the front windscreen. Will it create problems?

Ans : No. It all depends that you use the right kind of film for front windscreen as many films may be transparent but are not meant for front windscreen, as the optical clarity required for front windscreen installation may not be up to the mark. Also check the reflectivity of the film which should not be more than 10%. In fact if you check the glass area covered by the front windscreen glass its almost 40-45% of the entire glass area of the vehicle. More over the front windscreen is steeply inclined and hence most of the sunlight generating heat enters through it, if this glass is not treated, then even the best films on the sides and back glasses will not give you the desired effect of keeping the vehicle relatively cool. Good quality front windscreen films also have in built anti glare properties for comfortable night driving by minimising glare from the opposite coming traffic with their headlights on.

Q. Higher the infrared values of the film specification, higher is the heat rejection?

Ans : Not necessarily. Few companies mention very high infrared values. But still the films may not be very effective in rejecting solar heat. So always check the TSER which is the most important factor to check how, effective is the film. On checking the specification, kindly note whether the specification states the value of the total solar energy rejected is of the film alone or the film mounted on the glass as the plain glass would also reject heat in the range of 10 to 15%.

Q. Which films to choose from?

Ans : There are various brands available and you make your own choice after evaluating the price versus the quality and its benefits. Choose from a range of films which are non metallised as these films when applied to the entire car including the front windscreen will give problems with the signals i.e. signals of GPS, Signals of cell phones and other equipments. Also insist on a warranty card which gives you confidence that the product chosen and paid for, is what goes on your glasses.

Q. Can the film be scratched?

Ans : Aarmour Gard film comes with a tough anti scratch resistant coating to give you the years of trouble free service. Use soft clean damp cloth to wipe the film to give it a new look.

Q. Does the film require curing time?

Ans : Yes, depending on the type of film that you use it can take any where between 2 days to 5 days for the film to cure and dry completely. Few droplets, moisture or haze may be visible initially but they will disappear when the film is cured completely dry.

Q. Can we change the present film to Aarmour Gard film.

Ans : Yes, but it depends on the film that you already have , inferior films leave glue on the glass and it takes a lot of time to clean them, but it is possible.This is the advantage of films that you can change any time with the shade and type that you require.
